ZSHWX pneumatic butterfly valve

關(guān)注次數(shù)：

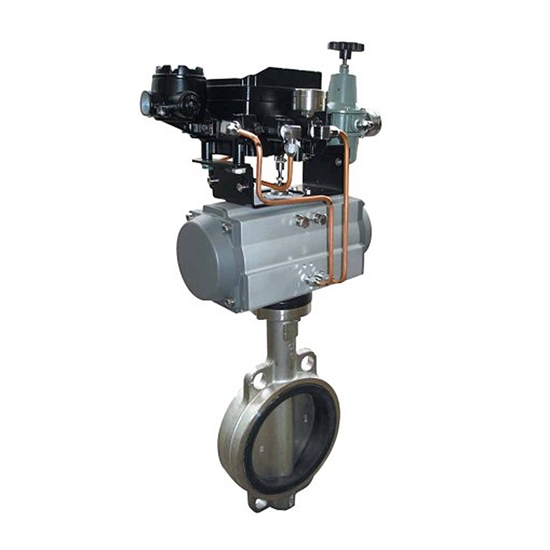

overview: long-life energy-saving type butterfly valve pneumatic butterfly valve is the development of the new company. Butterfly valve uses the design principle of three-dimensional eccentric, a new machining process of elastic sealing and hard and soft multi-level compatible with seals, butterfly valve in the operation of the seal is reliable, can achieve the sealing without leakage, the eccentric design and prolong the service life of the valve. Pneumatic actuator using the crank conversion structure, has the characteristics of large output torque, small volume, stable and reliable performance. With the valve positioner or solenoid valve supporting the use of proportional control can be achieved or switch control, suitable for gas, solid and liquid medium. Automation is widely used in papermaking, petrochemical, chemical, metallurgy, electric power, petroleum, light industry, environmental protection, building automation, industrial control system.

The main technical parameters of:

Nominal diameter of DN（mm）	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	800
The rated flow coefficient（CV）	95	175	270	375	740	1400	2100	3250	4680	6200	8100	11000	15800	21000	29000	38000
The maximum angle（σ°）	90°
Operating pressure（MPa）	0.4～0.8
Operating temperature range	-40～250
Input signal	（Electrical signals：4～20mA□dc）220VAC、24VDC
Nominal pressure（MPa）	1.0、1.6
Equipped with gas pipe	φ6×1（G1/8）					φ8×1.5（G1/4）						φ12×2（G3/8）
The connection type and standard	On the clip、According to the JB81-94
The valve body material	304、316、316Lz中ZG25
The valve core material	304、316、316L
The seat material	316、F4

Ordering instructions:

1 product model and the names of 2 nominal diameter (DN) of 3 nominal pressure (PN) 4 of the rated flow coefficient KV 5 body and valve assembly 6 is fixed material flow characteristics of 7 suitable temperature and medium 8 machine mode of action (power, power off) and the input signal with the attachment (operation 9 device, servo amplifier) and 10 other special requirements
